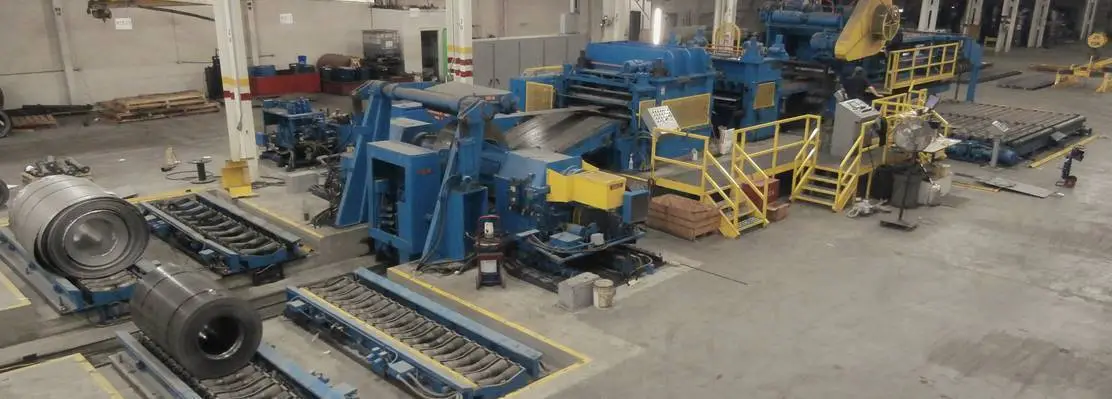

18" Pro Eco Slitting Line

Uncoiler
20- 24" Expansion Range
20,000# Coil Capacity
Hydraulic Expansion
Four Segment Mandrel
Hold-down Arm
Air Operated Disc Brake

Slitter Head
6" Dia. Entry Pinch Rolls
Entry Side Guides
5.5" Dia. x 21.5" Face Arbors
40 HP AC Motor, 1770 RPM, 440 V
Gear Reducer with 11.4:1 Ratio
65" Pass-line Height

Scrap Winder
Hydraulic Motor Drive
Oscillate Wind

Exit Unit
Pit Table
Separator Shaft
Crop Shear
Drag Wipe Tension Stand
Recoiler Feed Table

Recoiler
16" Diameter Drum
Bolt-on Pads for 20- 24" ID
Manual Expansion and Gripper
Hydraulic Push-off
50HP AC Motor (1765RPM, 460Volt)
Belt Driven with 1.6:1 Ratio (Approx.)

Overarm Separator
Floor Mounted

No Tooling
No Hydraulics
No Electrics
