72" Paxson/ Alcos Slitting Line

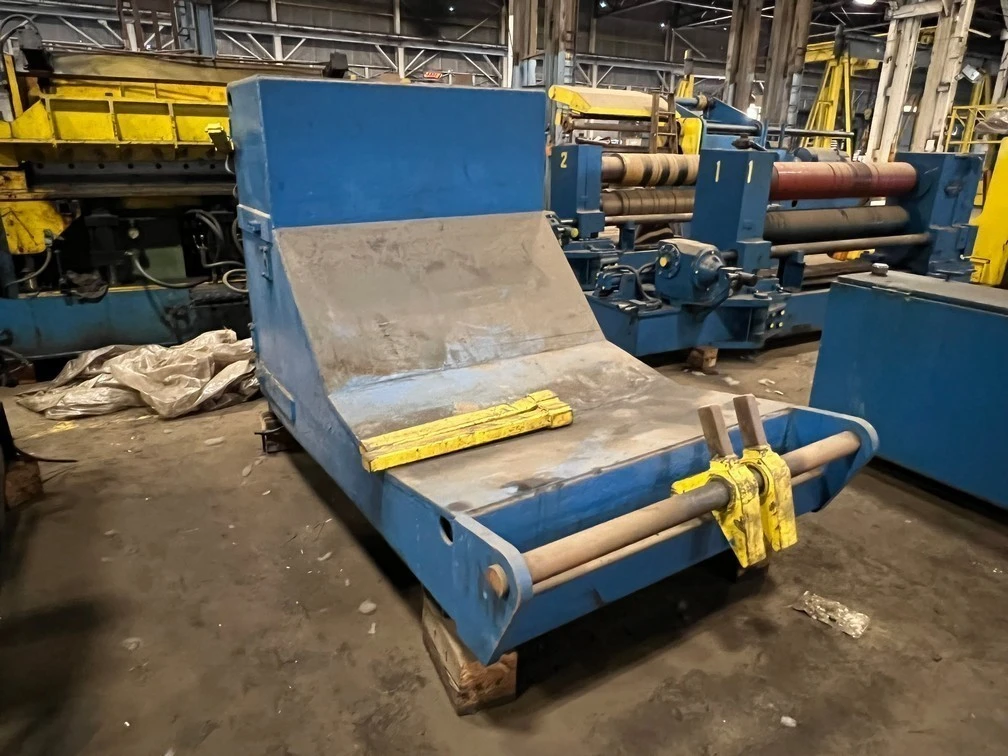

Entry Coil Car
Mast Type
Powered Lift and Traverse
Pendant Control
Narrow Coil Retainers

Uncoiler
Hydraulic Expansion
Slide Base
66" Wide Hold-down
Outboard Bearing Support
Water Cooled Brake

Entry Unit
Clam Shell Design with Feed Roll
Hydraulic Peeler Table
Driven Pinch Rolls
Down-cut Crop Shear

Slitter Assembly
Entry Pass Line Roll
Double Roll Edge Guide
20HP AC Feed-up Motor
100HP DC Motor (500/2000 RPM, 500 Volts)

Slitter Heads
Crane Removable
One (1) 7.5” Arbor
One (1) 9.5” Arbor
Double Eccentric Adjustment
Powered Outboard Retraction

Tension Stand
Pit Cross-over Table
Entry Separator Bar
Dual Air Bladder Tension Pads
Exit Tach Roll
Recoiler Feed Table

Recoiler
Hydraulic Gripper
Hydraulic Expansion
Overarm Separator
100 HP DC Motor (650/2000 RPM, 500 Volts)
Two (2) Speed Gearbox
Risers for 24” ID

Exit Coil Car
Mast Type
Powered Lift and Traverse
Narrow Coil Slots
Pendant Control

Hydraulic System

Main Operators Control Console

Electronics
AC/DC Cabinet

Tooling
Two (2) sets of Knives (Shimless)
Spacers
Rubbers
Separator Tooling

Minimal Drawings
