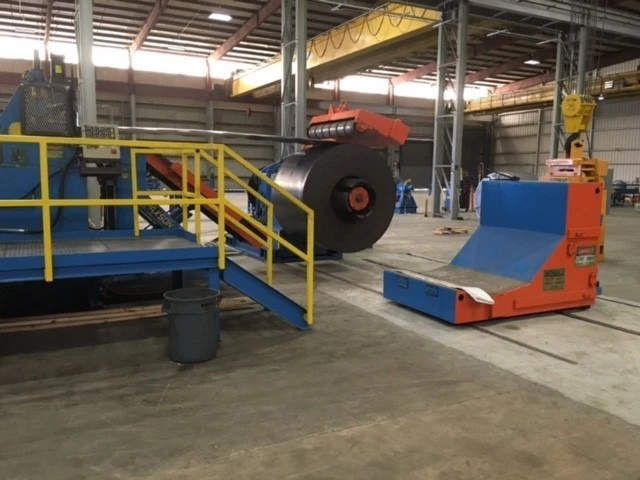

72" Paxson Slitting Line

Materials: HRS, CRS, P & O
Max. Coil Width: Entry 72”
Min. Coil Width: Entry 12”
Thickness Range: .020- .187” (Head #1)
.075- .375” (Head #2)

Max. Coil Weight: 50,000#
Max. Shear: 45,000 PSI
Max. Yield: 45,000 PSI
Coil I.D.: Entry 20- 24”
Exit: 20 & 24”

Max. Coil O.D.: 72”
Line Direction: Right to Left
Mode of Operation: Driven
Line Speed:

Entry Coil Car- L & M (1999)
Mast Type
Floor Mounted
Self-contained Hydraulics
Powered lift and traverse
Narrow Coil Retaining Slots
Pendant Control
Cable Reel

Uncoiler
Single Mandrel Type
Hydraulic Expansion
“Pumpkin Tooth” Segments
Water Cooled Brake
Slide Base
Feed-up Drive
Hold-down with Powered Snubber Roll
Cooling System for Brake

Entry Unit
Extending Blade Type Peeler
Four (4) Roll Coil Breaker: 8” Dia.
Powered Entry Side Guides
Inspection Table
Powered Exit Side Guides

Crop Shear
Down-cut Type
Powered Tamper Roll
Scrap Ramp

Slitter Base
150HP DC Motor (1750/ 2000 RPM, 500V)
H&S Gearbox (62.31/1, .927 SF)
Powered Entry Pinch Rolls: 10” Dia.
Powered Entry Side Guides
Manually Adjustable Scrap Guides

Two (2) Slitter Heads
Crane Removable
Powered Outboard Retraction
Powered Top Arbor Adjust
Slitter Head #1: 9” Dia. Arbor
Slitter Head #2: 12” Dia. Arbor

Pit Section
Cross-over Table

Two (2) Scrap Winders- Pro Eco
Powered Traverse
Automatic Scrap Dump
.500” x 1” Capacity per Winder

Tension Stand
Drag Type
Recoiler Feed Table

Recoiler
Hydraulic Push-off
Hydraulic Expansion and Gripper
Overarm Separator
125HP DC Motor (650/1900 RPM)
Two (2) Speed H&S Gearbox (3/1, 1/1 Ratio, 1.13 SF)

Exit Coil Car
Mast Type
Floor Mounted
Self-contained Hydraulics
Powered lift and traverse
Coil Stabilizing Arm
Pendant Control
Cable Reel

Exit Turnstile
Two (2) Arms x 50,000# Each Arm
Powered Rotation
Slotted for C-Hook
Provision for a Pull-off Assembly

Electrical Controls
AC & DC Control Cabinets
Bardac Drives (new in 2016)

Control Consoles
Main Operators Console
Machine Mounted Auxiliary Operators Stations

Slitter Tooling
Knives
Rubbers
Spacers
Separator Tooling

Two (2) Hydraulic Power Units

Spare parts for Recoiler Gripper
