32" Atkin Cut to Length Line

Materials: Pre-painted Steel, Pre-painted Aluminum
Material Width Range: 6- 32”
Thickness Range: .009- .078” @70-100FPM (approx.)
Thickness Range: .009- .039” @140FPM
Max. Tensile: 50,000PSI (approx.)
Max. Yield: 50,000PSI (approx.)
Max. Coil Weight: 11,000#
Coil I.D.: 16- 20”
Max. Coil O.D.: 60”
Line Direction: Left to Right
Pass-line: 42”
Length Accuracy: .0078”
Sheet Length: 4- 78”
Max. Stack Height/Weight: 20”/2,200#
Mode of Operation: Loop/ Grip Feed
Line Speed: 0- 140 FPM
20” Blanks: 65 per minute
78” Sheets: 17 per minute*

*limited by floor mounted configuration

Equipment List

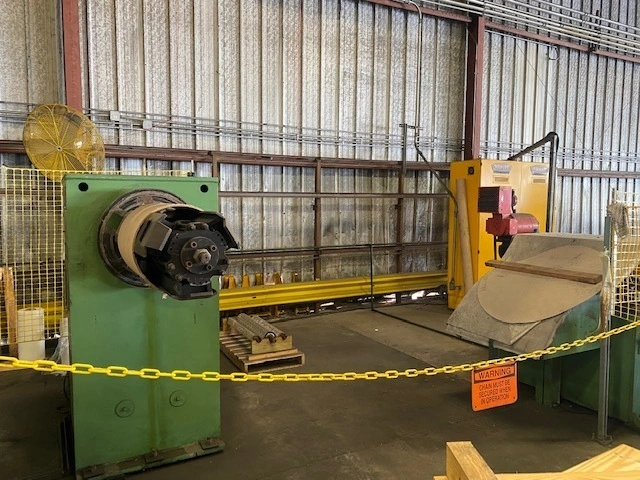

Uncoiler
Single Mandrel Type
Powered Expansion
Powered Feed-up
Disc Brake
Front Loop Control

Flattener
Entry Cantenary Table
Manual Entry Side Guides
Powered Entry Pinch Rolls
Seven (7) Work Rolls in 3/4 Configuration
Powered Exit Pinch Rolls
Manual Exit Side Guides
Machine Mounted Controls
30HP Motor

Loop Section
Entry Cantenary Table
Track Mounted Cross-over Table)
Exit Cantenary Table
Inspection Table

Roll-feed Unit
Mounted to Shear
Manual Entry Side Guides
Capable of 330FPM

High Speed Shear
Down-cut Type
Single Rake Blade

Run-out Table
Powered Belt Conveyor Top

Stackers
“Slide-out” Type
Manual Width Adjustment
Manual End Stop
Powered Scissor Lift Table with Side Discharge

AC/DC Control Cabinet

Main Operators Control Console
Indramat CTA4 Controller

Hydraulic Power Unit

Drawing and Manuals
