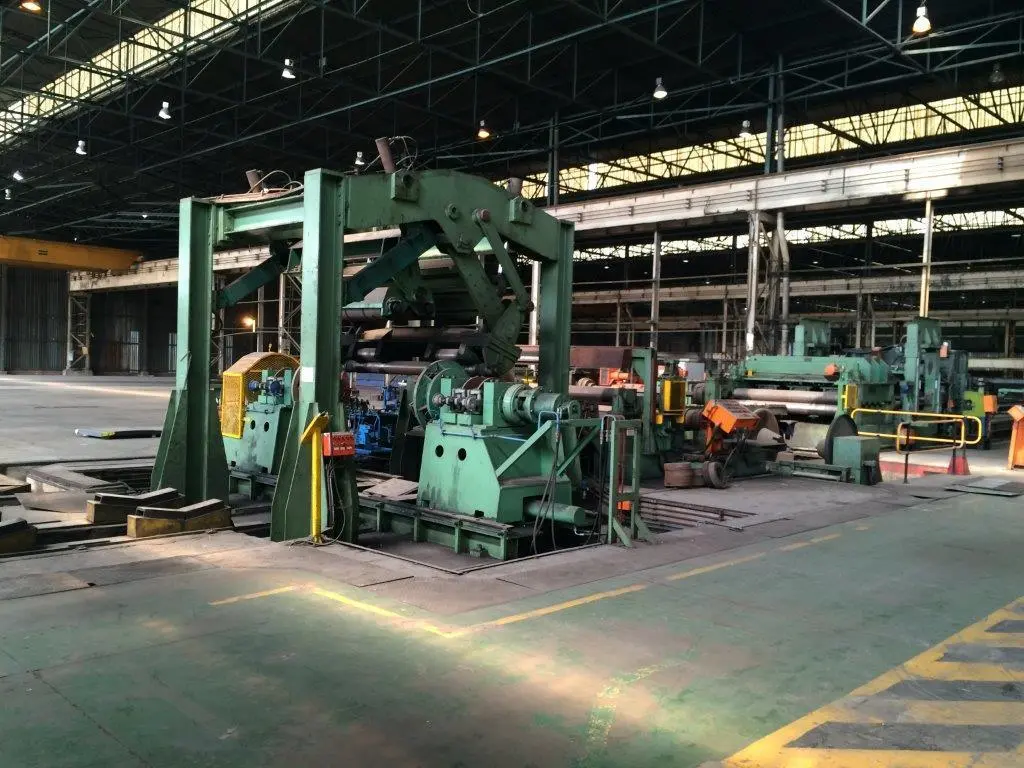

This Leveling Line is in storage in South Africa.
The Corrective Leveler with need a complete rebuild and some parts for it will need to be sourced/fabricated.
Materials: HRS, P/O, Tread Plate
Max. Coil Width Range: 30- 98” (untrimmed)
Thickness Range: .125- .550” (Flattener)
.187- .500” (Leveler)
Max. Shear: 50,000 PSI
Max. Yield: 50,000 PSI
Max. Coil Weight: 60,000#
Coil I.D.: 20- 30” (Cones)
Max. Coil O.D.: 82”
Line Direction: Left to Right
Sheet Length: 24”- 40’
Mode of Operation: Start/Stop
Line Speed: 0- 100FPM
Max. Finished Bundle: 20,000# @40’
Overall Line Dimensions:
EQUIPMENT LIST
Entry Coil Car
Pit Type
Self-contained Hydraulics
Powered lift and traverse
Cable Reel
Feed-up Assist Assembly
Floor Mounted
Hold-down with Powered Snubber Rolls
Uncoiler
Floor Mounted in Pit
Double Stub Type
Powered Expansion- each head
AC Feed-up Motor- one side
Wichita Air Cooled Brake- one side
Slide Base- each head
Entry Unit
Extending Blade Peeler
Powered Side Guides
Flattener
Powered Entry Pinch Rolls
Nine (9) Work Rolls in an 4/5 Configuration
8” Diameter Work Rolls
Three (3) Flights of Back-up Rolls (one powered)
250HP DC Motor
Entry Unit
Powered Entry Pinch Rolls
Powered Side Guides
Corrective Leveler
DC Motor
4HI Configuration
Nine (9) Work Rolls in an 4/5 Configuration
5” Diameter Work Rolls
Seven (7) Flights of Back-up Rolls (7 Adjustable)
220HP DC Motor
*this unit will require a complete rebuild.
Shear
Powered Entry Pinch Rolls
Hydra-mechanical Actuation
Single Rake Blade
Lube System
Powered “kick-out” Rolls into Stacker
Hydraulic Unit
Stacker
“Slide-out” Type
Powered Side Tampers
Powered End Stop
Exit End Discharge Conveyor
22’ Long Powered Conveyor
Hydraulic System
Electronics
AC/DC Cabinets
Siemens and Eurotherm Drives
Misc. Operators Control Consoles
Minimal Drawings/ some manuals
