Herr Voss Strand Extensioner 5 HI

Herr Voss Strand Extensioner 5 HI

Have one to sell?
404-408-2194
bigern@cjemachine.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Slitters & Slitting Lines
Manufacturer:
Herr Voss
Model:
72/1.156-23/5 HI / RH
Status:
For Sale
Country:
United States

Description

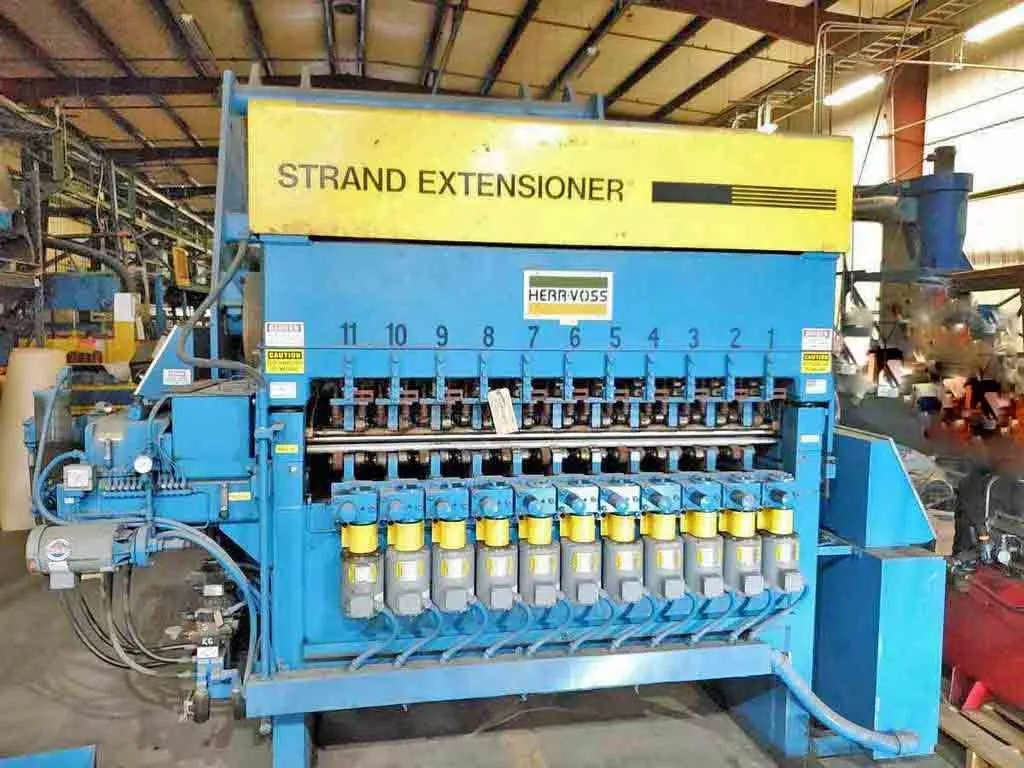

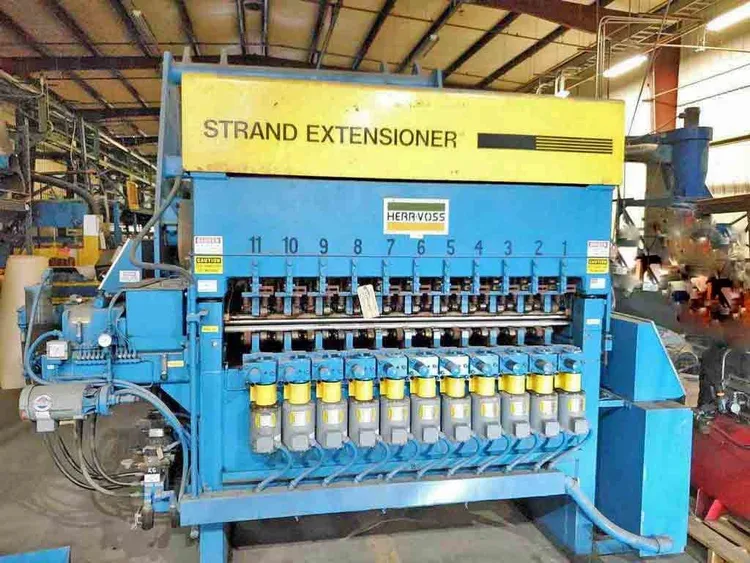

Strand Extensioner, Herr Voss, 62.5" Wide

-Width Capacity: 62.5" Max.
-23 Roll design, 11 over 12
-Minimum Coil Thickness: 0.008"
-Maximum Coil Thickness: 0.040" (0.076" depending on recoiler hp)
-Maximum Line Speed: 1500 FPM
-Material Yield Strength: 12,000 to 40,000 PSI
-72" Roll Face
-1.1560" Roll Diameter
-11 Flights of Motorized Backups
-Hydraulic Motor Drive with Pinion Box
-Lube system
-Operators Panel w/Joystick Controls
-Line direction: R - L

Exit Unit:
-Deflector Roll
-Powered Bottom Nip Roll with Hydraulic Motor Drive
-Hydraulic Crop Shear
-Exit Threading Table
-Operators Panel

-Spares

Please Note: The equipment is sold as is, at time of removal. Purchaser may inspect equipment by appointment up to time of removal. No warranties, expressed or implied, are given by the seller. Specifications per the above are those of prior owner and, as such, have not been verified by CJE Machine LLC. Inspection of the equipment by the Seller has been limited to general line operating observations. The equipment offered in this proposal is covered under one or more of the following safety standards: ANSI B11.14 Coil Slitting Machines/Systems ANSI B11.18 Machinery and Machine Systems for the Processing of Coiled Strip, Sheet, and Plate The buyer of this equipment assumes responsibility for complying with these standards. Copies are available from the following: American National Standards Institute 11 West 42nd Street New York, New York 10036
