54" Pro Eco Slitting Heads
Year of Manufacture: 1985 (Approx.)
Materials: HRS, CRS, Alum.
Max. Coil Width: 54”
Thickness Range: .010 - .125”
Max. Shear: 50,000 PSI
Line Direction: Right to Left
Mode of Operation: Driven
Line Speed: 600/1200 FPM (Factory Specifications)
Equipment List:

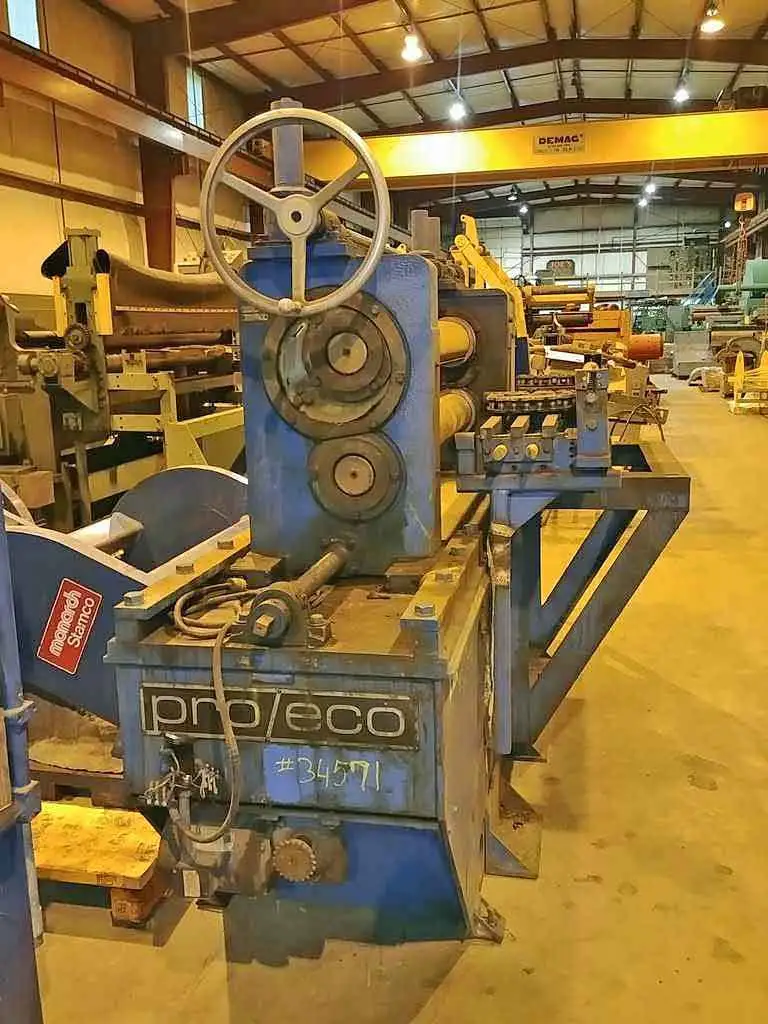

Slitter Head #1 “Blue”
“Injector” Type (Cams required)
Idler Pinch Rolls (Home-made)
Manual Edge Guide (Home-made)
7” Diameter Arbor Heads
Powered Outboard Retraction (repair needed)
Single Eccentric with Powered Top Arbor Adjust
Slitter Head #2 “Green”
“Injector” Type
7” Diameter Arbor Heads
Powered Outboard Retraction
Single Eccentric with Powered Top Arbor Adjust
Transmission
60HP Premium Efficiency AC Motor (1775RPM) with Reducer
Drive-All Two (2) Speed Gearbox
Slitter Tooling
Knives
Steel Spacers
Rubbers
Tooling Cart
*The Slitter Heads will require the following services prior to installation:
A new Injector Transfer Table with Head Positioner/Locking Mechanism
New Coupling for Slitter Head #1 and Reducer
Motor and Gearbox Mounting
New Cam Rolls for Slitter Head #1
Misc. Minor Repairs both Heads
Arbor Cleaning both Heads
Tooling Reconditioning
New AC Drive and Controls
