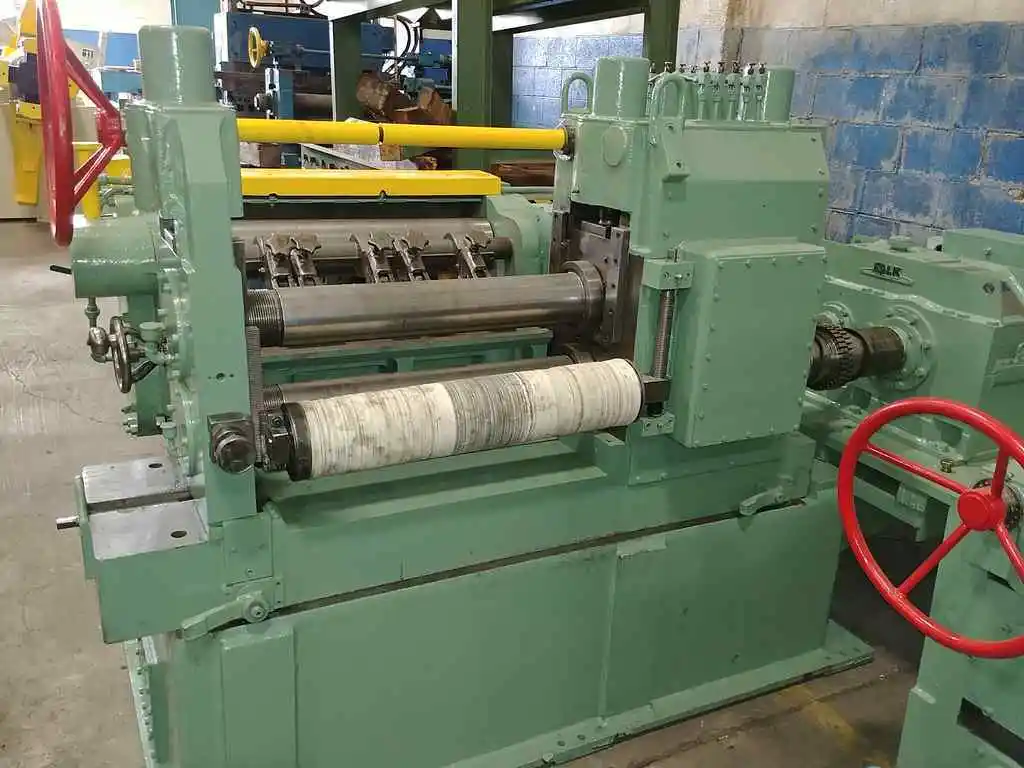

24" CMP Slitter Head Assembly

Materials: CRS, Alum.
Max. Coil Width: 24”
Thickness Range: .005 - .075”
Max. Tensile: 50,000 PSI
Line Direction: Left to Left
Mode of Operation: Pull-thru
Line Speed: 0-50FPM (thread-up)

Features:

Stationary Slitter Base
Manual Side Guides
Powered Entry Pinch Rolls
Exit Pass-line Roll
15HP AC Motor (1750RPM, 230/460V)
Falk Reducer (15:1)
Falk Parallel Reducer (5.133:1)
Right Angle Gearbox (20:1)
2.29 Service Factor @1700RPM

Two (2) Slitter Heads
Crane Removable
25.5” x 4.5" Diameter Arbors (No Key-way)
Manual Top Arbor Adjust
Manual Outboard Retraction
Manually adjustable Entry Pass-line Roll

Tooling
Large amount of Knives
Small amount of Spacers and Rubbers

Drawings
