10" Cauffiel Edging/ Flat Bar Line

Coil Width Range: 2- 10"
Thickness Range: .064 -.250"
Max. Coil Weight: 10,000 lbs.
Line Direction: Left to Right
Mode of Operation: Coil to Coil/Cut to Length

Consisting of the following:

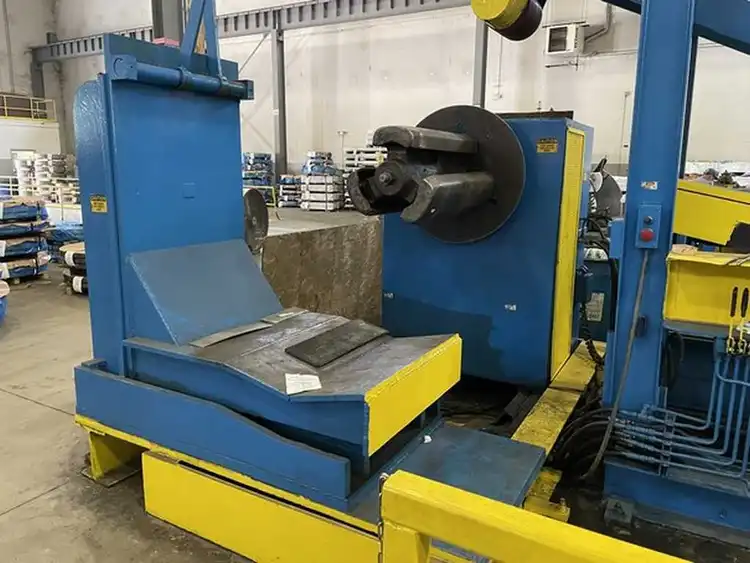

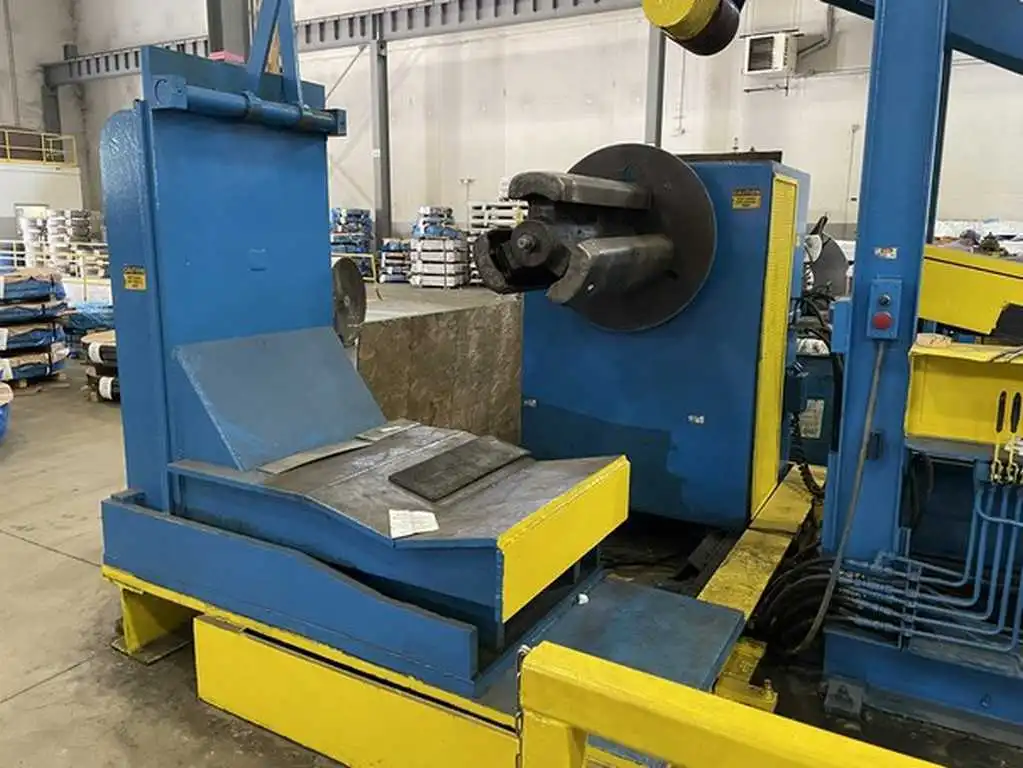

Coil Lift
Lift only (no traverse)
30" Wide Deck
5" Dia. x 18" Stroke Hydraulic Lift Cylinder
Two (2) Coil Keepers

Uncoiler
16- 20" Expansion Range
Hydraulic Expansion
Air Brake
Hydraulic Threading Drive
Hydraulic Slide Base
Self-contained Hydraulic Unit

Entry Unit
14" W Peeler Blade
Hydraulic Cylinders for up/down, in/out movement
14" Face x 6" Dia. Rubber Coated Hold-down Roll
Hydraulic Cylinder Raise/Lower

Edging Unit
Entry Pass-line Roll
Manual Entry Edge Guides,
Three (3) Rolls per Bank
Manual Strip Hold-down Screw

Mill Unit
Rolling Mill #1 with a 4HI Configuration
4.5" Dia. Work Roll, 13" Face
10" Dia. Backup Roll, 13" Face
Hydraulically powered screw-downs
200HP DC Motor with Blower
Cooling Unit

Edging Unit #1
Three (3) Rolls per Bank (the top die retainer block is missing on 3 units)
Single point adjustment for the Die Set
Operator side Dies are independently adjustable

Rolling Mill #2 with a 2HI Configuration
8" Dia. Work Roll (bottom Work Roll is driven)
Manual screw-downs

Edging Unit #2
Three (3) Rolls per Bank
Single point adjustment for the Die Set
Operator side Dies are independently adjustable

Rolling Mill #3 with a 2HI Configuration
8" Dia. Work Roll (bottom Work Roll is driven)
Manual screw-downs

Decambering Section
Nine (9) Die Sets (staggered/off set)
Five (5) on Operator’s side
Four (4) on Drive side
Seven (7) Dies make up the decambering section
The last two (2) Dies #8 and #9 are independently adjustable for final edging
Single point adjustment for the entire Die Set

Straightener
4" Dia. Work Rolls in a 3/2 configuration
Bottom Rolls chain driven from 2HI Mill Stand
Exit Pass-line Roll

Four (4) Post Cut-off- Proma
60 Ton Capacity
Model 60 CP-2
13" Shut Height
4" Stroke
25 Cuts/Min
11" Die Space
Shear Blade w/Hydraulic Cylinder Die return
15 HP AC Motor (1200 RPM)
Exit Pass-line Roll

Runout Conveyor
15' long
Powered side dump

Stacker Table
15' Long

Tension Stand
Drag Type with Air Cylinder

Recoiler- Ruesch
Model: N2915
Serial: 6229
20" Dia. x 32 Face Mandrel
Manual Expansion and Gripper
Powered Push-off
Slide Base
Overarm Separator
125 HP DC Motor with Blower (650/1500RPM, 400V)
Internal Reducer (24.77:1)

Turnstile
Two (2) Arms x 10,000# each arm
40" Arm Length
Slotted for C-Hook
Powered Push-off
Manual Rotation

Main Operators Control Console

Hydraulic System
Three (3) HPU’s

Spare Parts

Mill Rolls

Edging Dies
