24" Bruck Coil to Coil Perforating Line

Materials: CRS, Stainless Steel
Max. Coil Width: 24”
Max. Thickness: .078” (Mild Steel)
.050” (Stainless Steel)

Max. Coil Weight: 12,000#
Max. Shear: 45,000 PSI
Max. Yield: 45,000 PSI
Coil I.D. (Entry): 16- 20” (Approx.)
Coil I.D. (Exit): 20” (Approx.)
Max. Coil O.D.: 72” (Approx.)
Line Direction: Left to Right
Line Speed: 0-60FPM
Power: 3 Phase, 220V, 50Hz

Equipment List:

Coil Jack
Mounted to Uncoiler Base
Power Lift

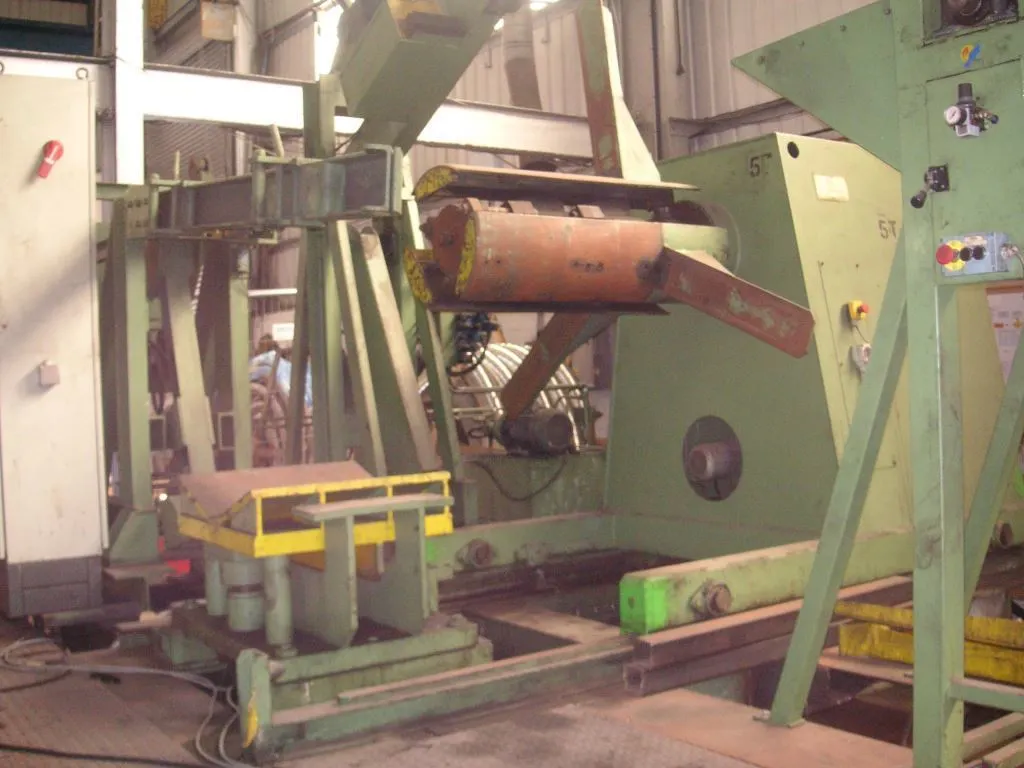

Uncoiler
Single Mandrel Type
Hydraulic Expansion
AC Powered
Slide Base
Self-contained Hydraulic Unit
Machine Mounted Controls

Front Loop Assembly
Idler Pinch Rolls
Entry Cascade Rolls

Corrective Leveler
4HI Configuration
Nineteen (19) Work Rolls in am 8/9 Configuration
Five (5) Flights of Back-up Rolls (Manually Adjustable)

Press
50/56 Ton
38.5” Bed Width
13.75” Gap Height
2.36” Slide Adjustment
30HP Motor

Squaring Shear
Down-cut Type
Single Rake Blade
AC Powered

Recoiler
Hydraulic Push-off
Manual Expansion
Manual Gripper
DC Motor
Powered Hold-down Roll

Electrical Controls
Main Control Console
AC Panel
*New Electrics are recommended

Hydraulic System

Misc. Die Sets

Drawings
