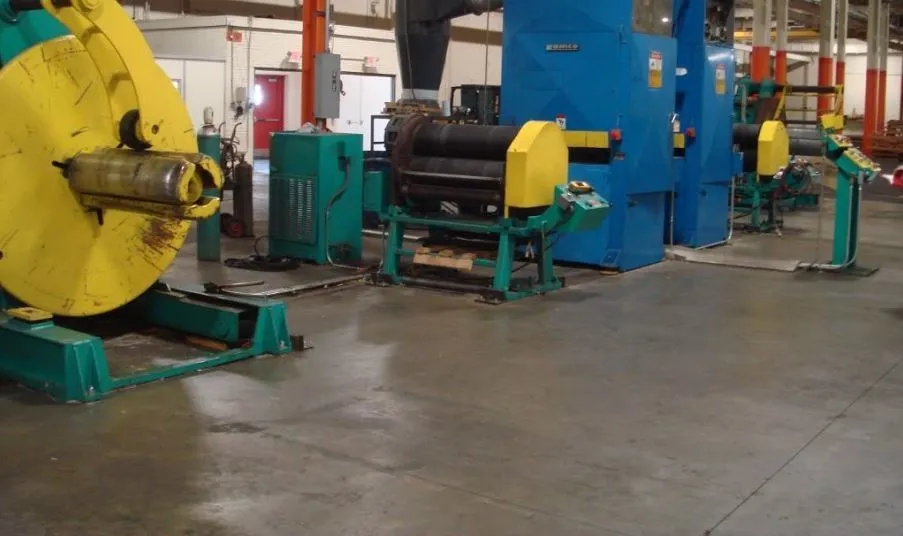

30" ASL/Ramco Coil to Coil Stainless Steel Polishing Line

Materials: Stainless Steel
Max. Coil Width: 30”
Max. Thickness: .048”
Max. Coil Weight: 15,000#
Max. Shear: 45,000 PSI
Max. Yield: 45,000 PSI
Coil I.D. (Entry): 16- 20”
Coil I.D. (Exit): 20”
Max. Coil O.D.: 72”
Line Direction: Left to Right
Mode of Operation: Pull through
Line Speed: 0-150FPM

Equipment List:

Uncoiler- American Steel Line
Model #1000-150NM
Single Mandrel Type
“Wedge Type” Hydraulic Expansion
Air Cooled Brake
Hold Down with Idler Snubber Roll
Feed-up Drive
Slide Base
Self-contained Hydraulic Unit
Paper Rewinder
Machine Mounted Controls

Entry Tension Stand- American Steel Line
Rotary Type
12” Diameter Rubber Coated Rolls
Pneumatically Powered Bottom Roll
12” Wichita Water Cooled Brake on Top Roll
Water Cooler for Brake
Machine Mounted Controls

Polishing Head #1- Ramco
Powered Belt Sander Type
Manual Height Adjustment
Polishing Head #2- Ramco
Powered Belt Sander Type
Manual Height Adjustment
Machine Mounted Controls

Exit Tension Stand- American Steel Line
Rotary Type
12” Diameter Rubber Coated Rolls
Pneumatically Powered Bottom Roll
12” Wichita Water Cooled Brake on Top Roll
Water Cooler for Brake
Machine Mounted Controls

Recoiler- American Steel Line
Hydraulic Push-off
Hydraulic Expansion
Manual Gripper
40HP Eddy Current Motor (240/440V)
Self-contained Hydraulic Unit
Powered Hold-down Roll
Machine Mounted Controls

Electrical Controls
Main Control Console
AC Panel
