Max. Material Width: 38” (40” usable)
Line Direction: Right to Left

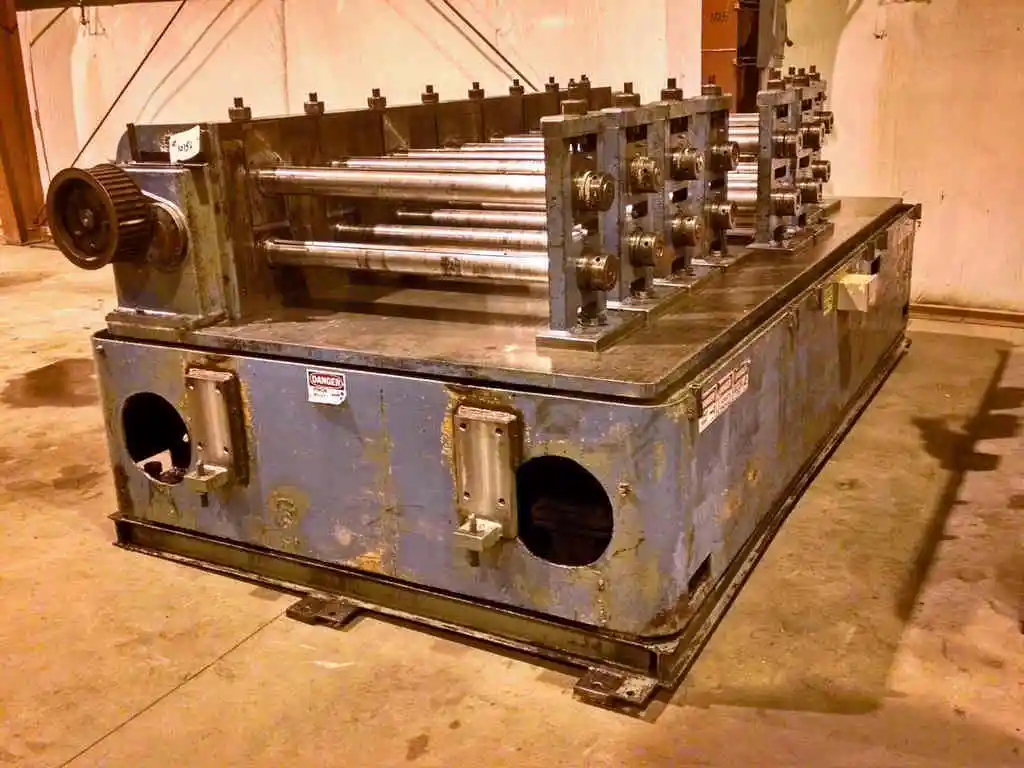

Roll Former
Manual Guide Table
Eight (8) Stands
3.25” Spindles with ½” x ¼” keyway
14” Horizontal Spacing
7” Base to Center of Bottom Shaft
1.5” Vertical Adjustment
32” Floor to top of Base*
Equal Gearing
15HP DC Motor (1750/2300RPM, 500V, new in 1999)
Euro-drive Reducer (22.37/1)
Roll Former Dimensions: 144” L x 89” W x 58” T, 16,000#
Motor/Gearbox Dimensions: 54” L x 38” W x 37” T, 1,000#
*Base is currently sitting on 7” tall I-Beam
Please Note: The equipment is sold as is, at time of removal. Purchaser may inspect equipment by appointment up to time of removal. No warranties, expressed or implied, are given by the seller. Specifications per the above are those of prior owner and, as such, have not been verified by CJE Machine LLC. Inspection of the equipment by the Seller has been limited to general line operating observations.
The equipment offered in this proposal is covered under one or more of the following safety standards:
ANSI B11.14 Coil Slitting Machines/Systems
ANSI B11.18 Machinery and Machine Systems for the Processing of Coiled Strip, Sheet, and Plate
The buyer of this equipment assumes responsibility for complying with these standards. Copies are available from the following:
American National Standards Institute
11 West 42nd Street
New York, New York 10036
