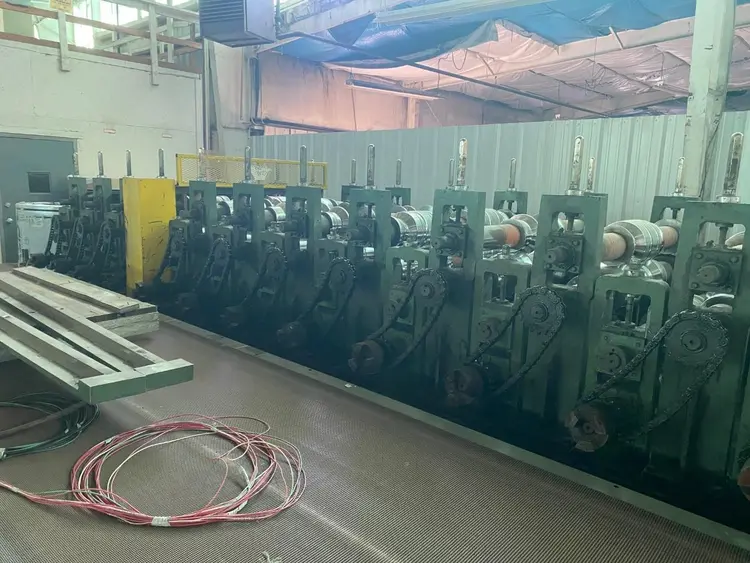

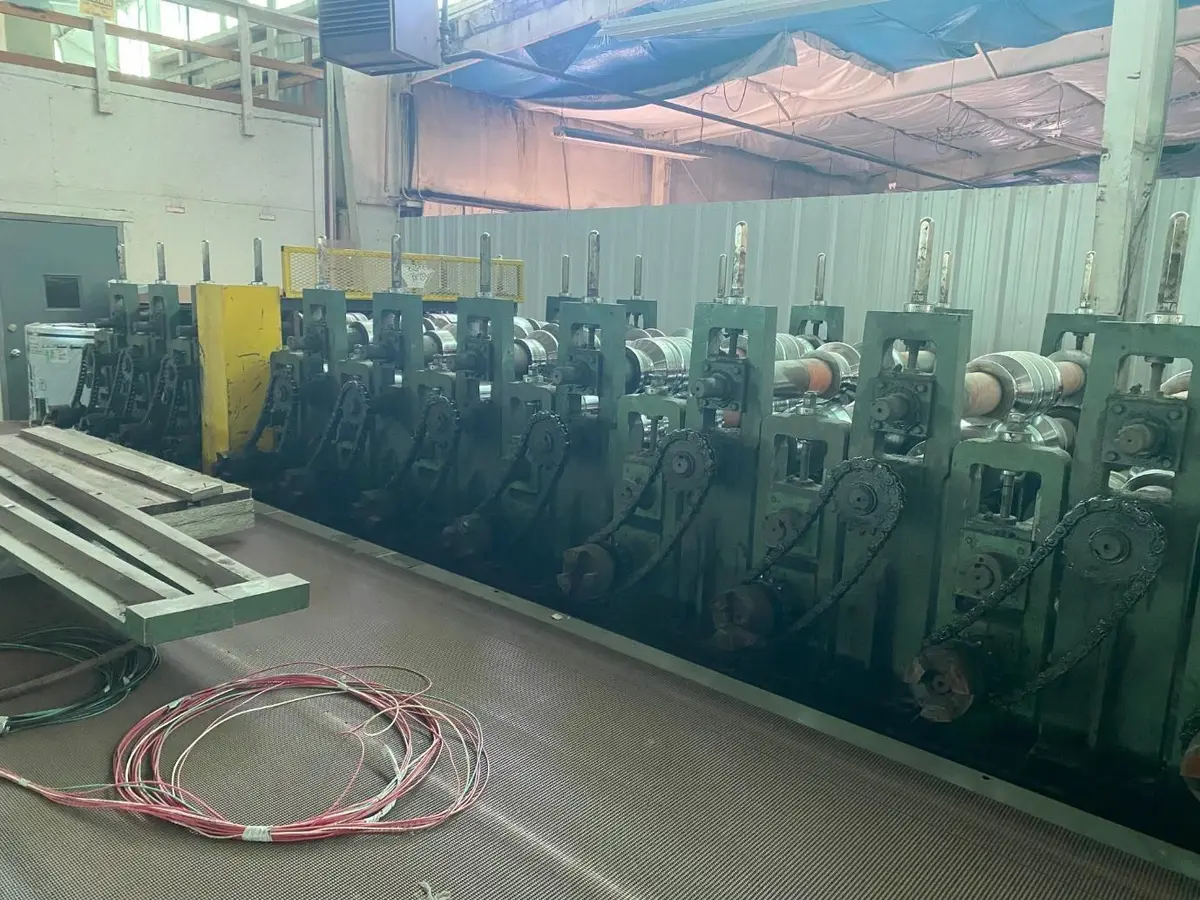

Bradbury Double High® Rafted® Rollformer
Roll Formers
The machine was tooled up with U-panel and A-panel and can handle up to 22-gauge maximum material thickness.
Pass #13 and #14 lower level have 4” spindles which was a requirement for the original tool set.
No Tooling included
Bradbury rollformer supplied on serial number WO #27521 / shipped in 1994.
Bradbury rollformer upgraded to Double High® on serial number WO #36071 / shipped in 2000.
200 FPM maximum.
3.5" diameter arbors on all upper level passes.
3.5" diameter arbors on all lower level passes except for pass #13 and pass #14
Lower level pass #13 and pass #14 supplied with 4" diameter arbors.
48" rollspace.
Fourteen (14) upper and lower level passes
Double High® adjustable powered lead-in guide included.
Right to left lineflow.
Electrical not included.
Guarding not included.
