48" Bradbury "Single High" Roll Former
Materials: Painted, Galvanized
Max. Coil Width: 48”
Thickness Range: .017- .035”
Max. Yield: 80,000PSI
Line Direction: Right to Left
Arbor Diameter: 4”
Horizontal Centers: 18”
Vertical Adjustment: 6- 11”
Line Speed: 0- 120FPM
Dimensions: 130” W x 359” L
Roll Former Base #1
64” W x 178” L
Roll Former Base #2
64” W x 160” L
Gearbox Assembly #1
Nine (9) Passes
DC Motor
Gearbox Assembly #2
Nine (9) Passes

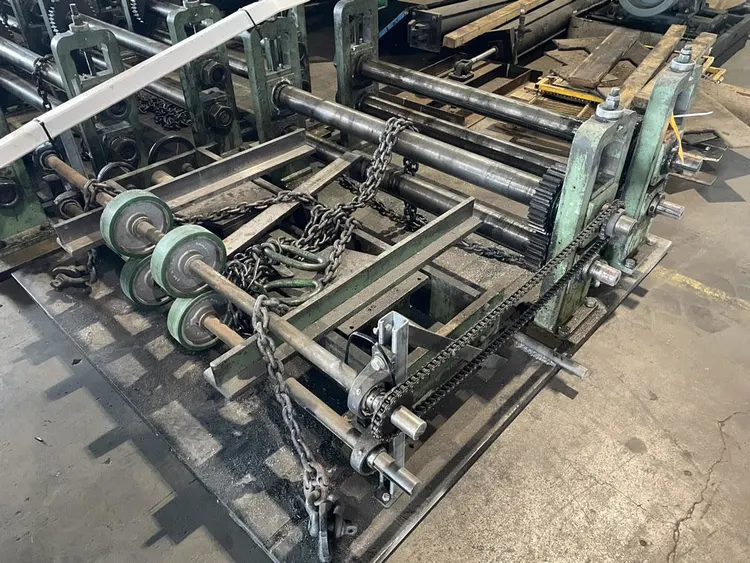

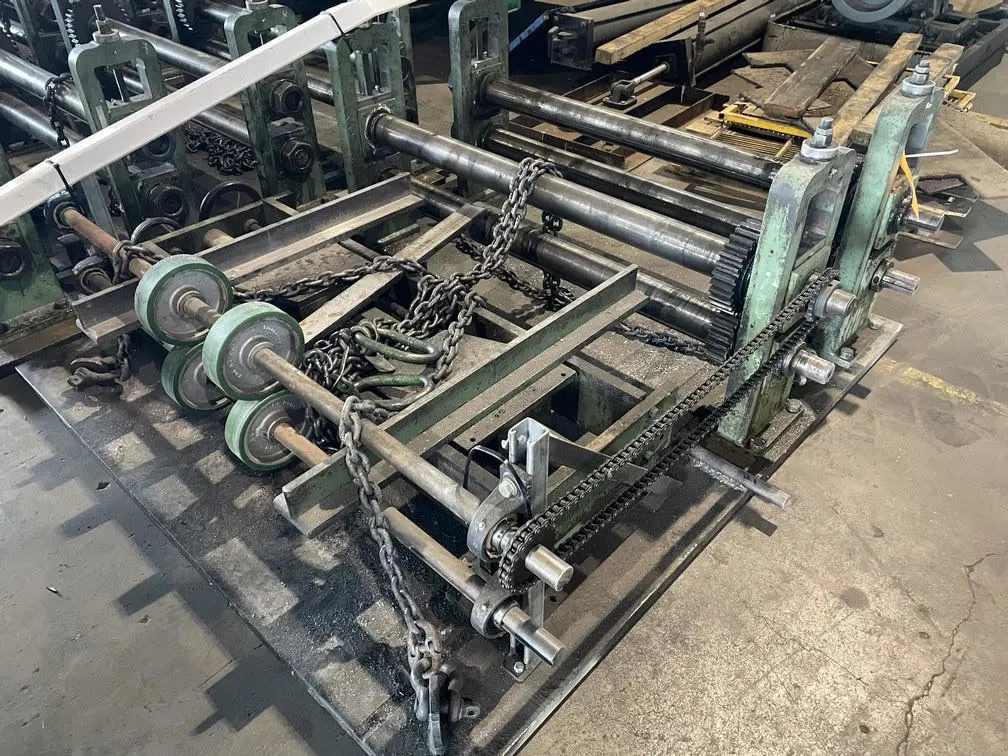

Raft #1 (Entry)
Crane Removable
Powered Feed Rolls
Manually Adjustable Guide Table
Two (2) Stands
Raft #2, 3, 4
Crane Removable
Three (3) Rafts with four (4) Stands each
Raft #5, 6, 7
Crane Removable
Three (3) Rafts with six (6) Stands each
